Rebreather

Rebreathers

Rebreathers are not a new technology, but over time they have evolved from pure O2 rebreathers to fully electronic systems. The first SUBMATIX rebreathers were simple SCR systems. These were quickly developed into eCCR rebreathers. The focus has always been on ease of use and reliability.

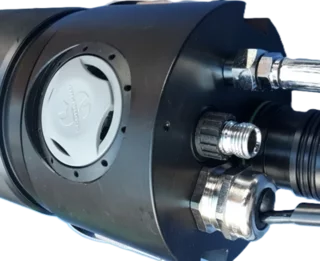

Controller

  • dual processor system
  • dual power supply
  • 3 x analog or optical ( GF ) sensor possible
  • sensor voting logic
  • solenoid output 6 volt
  • wireless data transmitter
  • ambient pressure sensor
  • SD card for data storage
  • 2 x HP pressure sensor for Oxygen / DIL
  • USB port for data storage / chargin / programming
  • options : wireles port for temp stick data from scrubber temperature / Buzzer / vibration motor

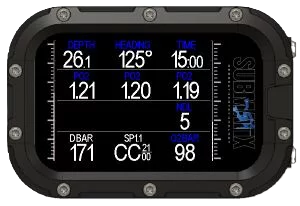

  HANDSET / HUD / Wireless Transmitter

  • Maximum operational depth: 120 m
  • Full color transflective sunlight   readable   TFT Screen, 320x240 pixel,   RGB
  • Digital Pressure Sensor, 300 m rated
  • Depth resolution: 0.1 m
  • Temperature resolution 0.1 °C
  • Digital compass, tilt compensated
  • 2 channel magnetic wireless   interface,125   kHz
  • BT interface
  • USB interface
  • Housing made from Glass fiber   reinforced   Polyamide
  • The depth of equipment certification   according to EN250:2014 is 50 m
  • The air supply for equipment compliant   with EN250:2014 shall meet the   requirements
  • For breathable air in accordance with   EN 12021
  • Languages : German / English / Chinese / French / Spain / Italien


     Decompression algorithm

  • Buehlmann ZH-L16C decompression model
  • 6 compartments for Nitrogen, 16 compartments for Helium
  • Gradient factors
  • No-fly time indicator
  • Automatic altitude adaption
  • AIR / NITROX / TRIMIX open circuit diving
  • 5 gas settings for open circuit diving
  • Closed circuit rebreather diving
  • 3 Diluent gas settings for closed circuit diving

   Wireless Transmitter

  • wireless Transmitter  for wireless data transfere from sensor data to handset or HUD moinitor
  • Sensorconnection with 7 pin Fischer connector

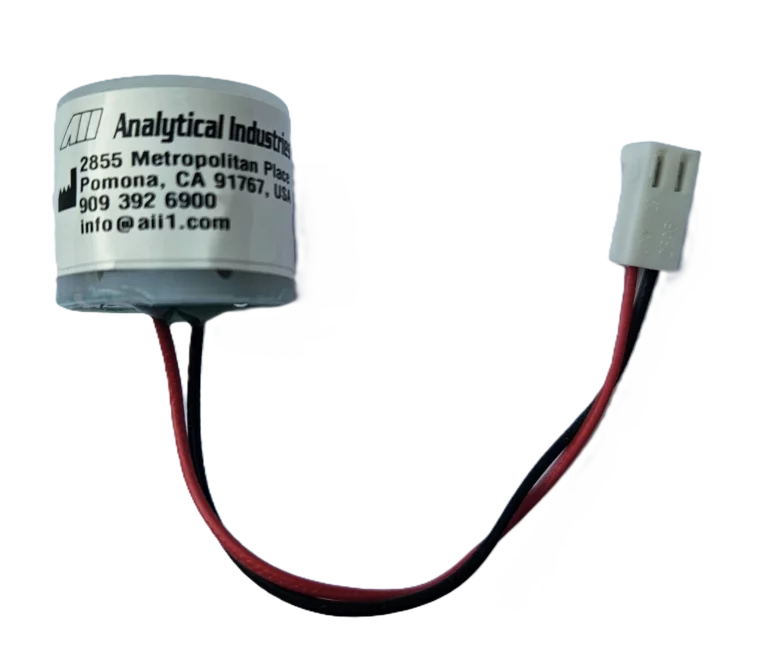

  Analytical O2 Sensoren

  • Oxygen Sensor Model PSR 11-39-MDSX
  • Measuring Range 0-100% O2 0-100%
  • Signal Output (1)  8.5 -14 mV
  • Response Time 90% 6 seconds
  • 6 seconds  Accuracy Full Scale (2)(4) ±   1%
  • Accuracy Over Operating Range ± 5%
  • Drift % Signal/Month (2)(3) < 1%
  • Linearity ± 1%
  • Flow Rate Recommended 0.1–10 lpm   0.1–10 lpm
  • Position Sensitivity (3) None
  • Temperature Coefficient Compensated
  • Operating Range 0 to 50° C
  • Pressure Ambien  Humidity Non-
  • Condensing 0-99%
  • RH 0-99%
  • Expected Life (1) 36 months
  • Storage Temperature (5) -20 to 55°C
  • Recommended Storage (5) < 6 months
  • Warranty ex-factory (6) 12 months
  • Electrical Connections 2 pin molex with   2 1/8" wires

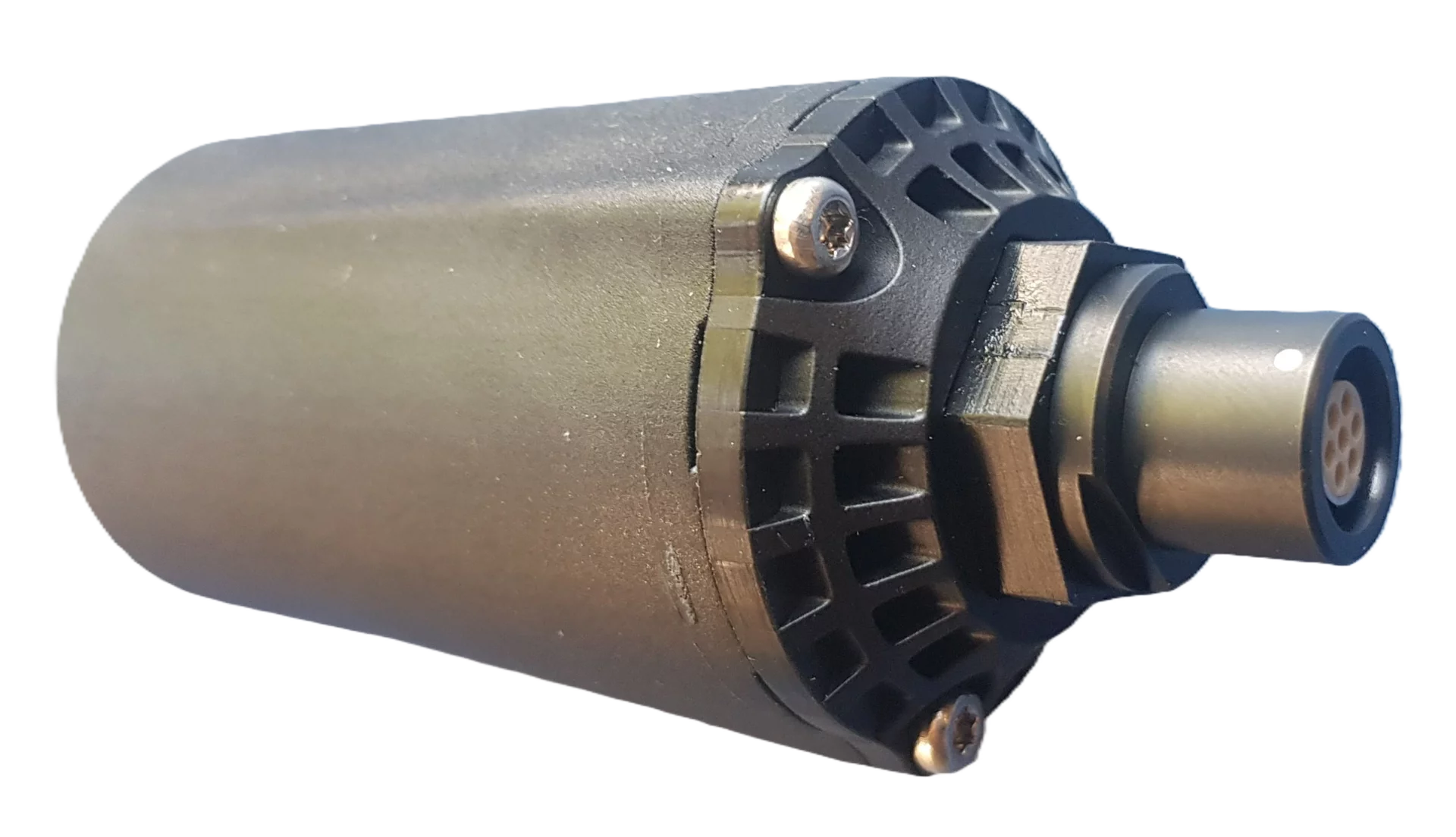

 GREEN FLASH O2 Sensoren

  • Digital solid state O2 sensor
  • Range: 0.1 – 2 bar pO2
  • Response time t63 < 1.5
  • Expected lifetime: 5 years
  • Integrated temperature compensation
  • M16 thread
  • Diameter: 30mm
  • Smart interface
  • Digital mode
  • Analog mode (~ 10mV @ 0.21 bar pO2 )
  • Battery powered (Coin cell, CR2477)
  • Battery is user replaceable
  • Compliant to: EN 80601-2-55:2018, EMC

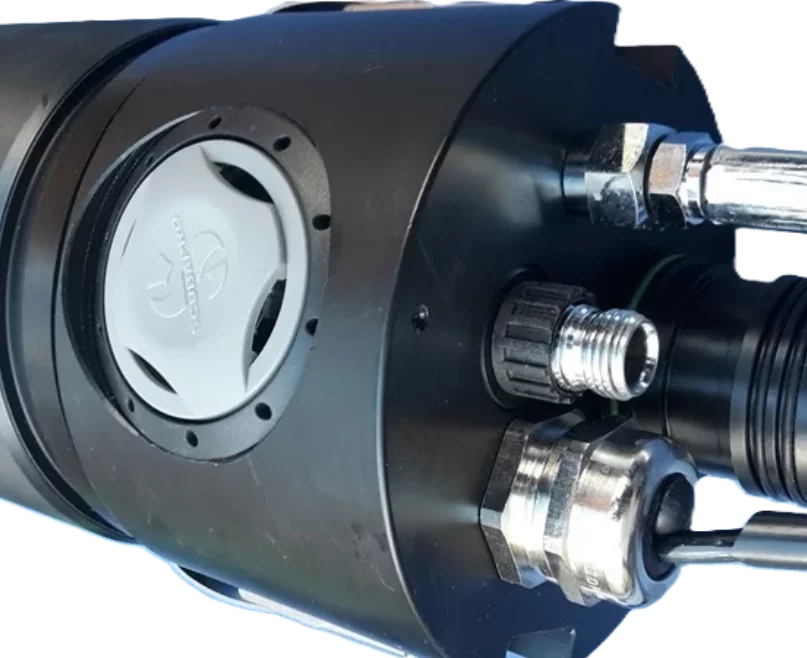

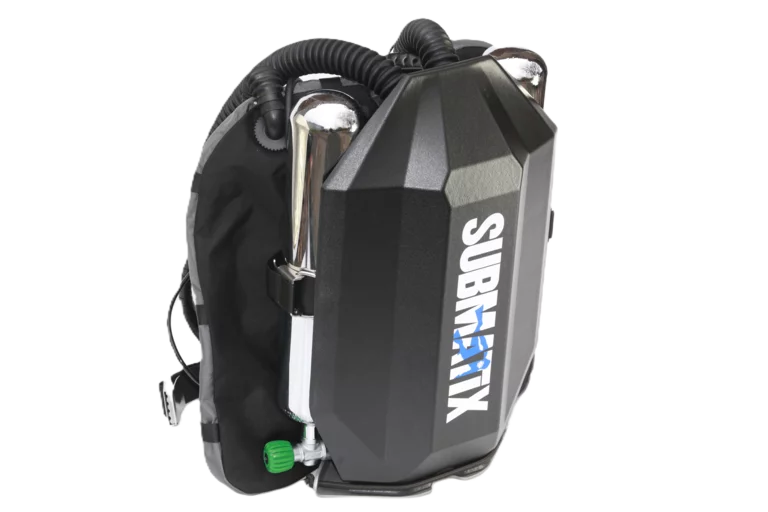

 QUANTUM SF eCCR REBREATHER

The latest generation for demanding diving missions If you're looking for an electronically controlled rebreather that meets the highest technical standards while offering uncompromising reliability, then the Submatix Quantum SF eCCR rebreather is the perfect system for you. This device combines state-of-the-art sensor technology, modular design, and intuitive operation – developed for technical divers who accept no compromises.

  • eCCR Rebreather
  • Counterlung on the back for optimal WOB

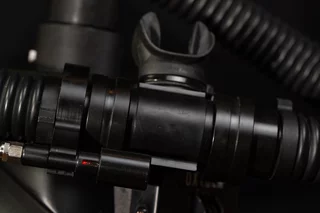

  • Submatix X-Con connector on the breathing hose
  • one-handed mouthpice
  • Flexible cylinder sizes
  • transparent scrubber canister / 2.7 Kg material
  • Manual O2 and DIL booster
  • Oxygen supply via JAKSA solenoid
  • wireless handset (dive computer / Set point controller)
  • multiple handsets possible ( buddy or indtructor )
  • robust seewater resist ALU Frame & back plate

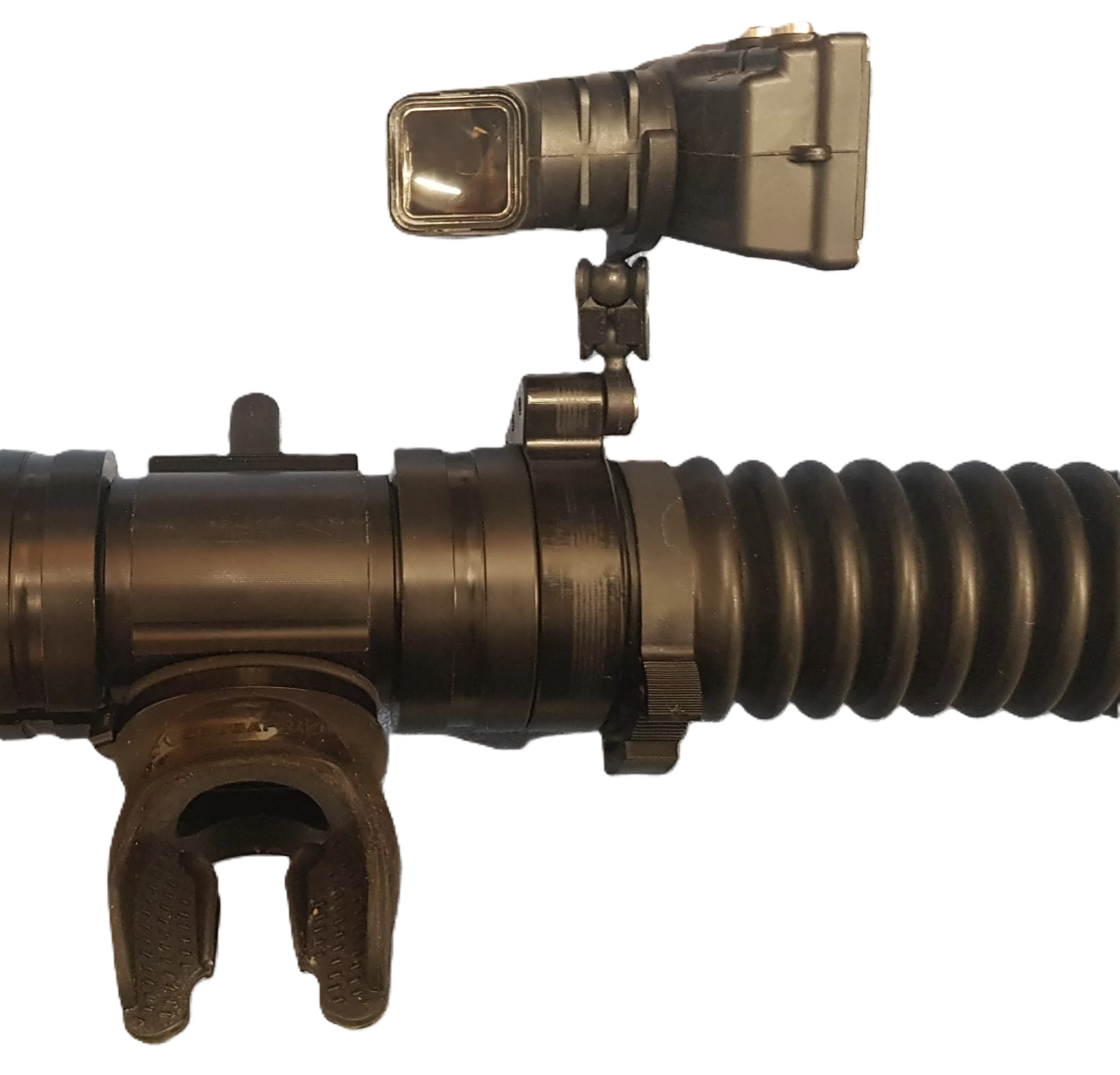

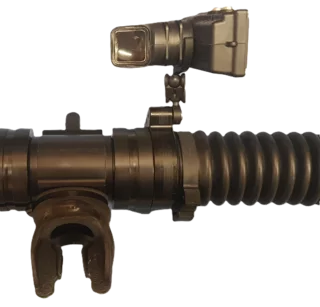

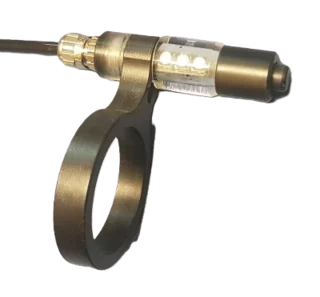

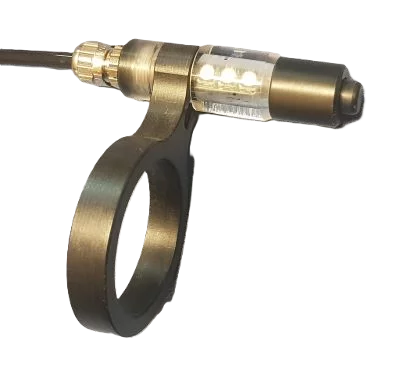

  • HUD display with 3 LED for each PPO2 sensor
  • use of chemical and optical ( Green Flash )sensors possible
  • optional PPO2 monitoring possible
  • setpoint switch on HUD
  • Digital HP O2 & DIL pressure sensors dispayd ao Handest
  • all cables made in longitudinally pressure-tight cable

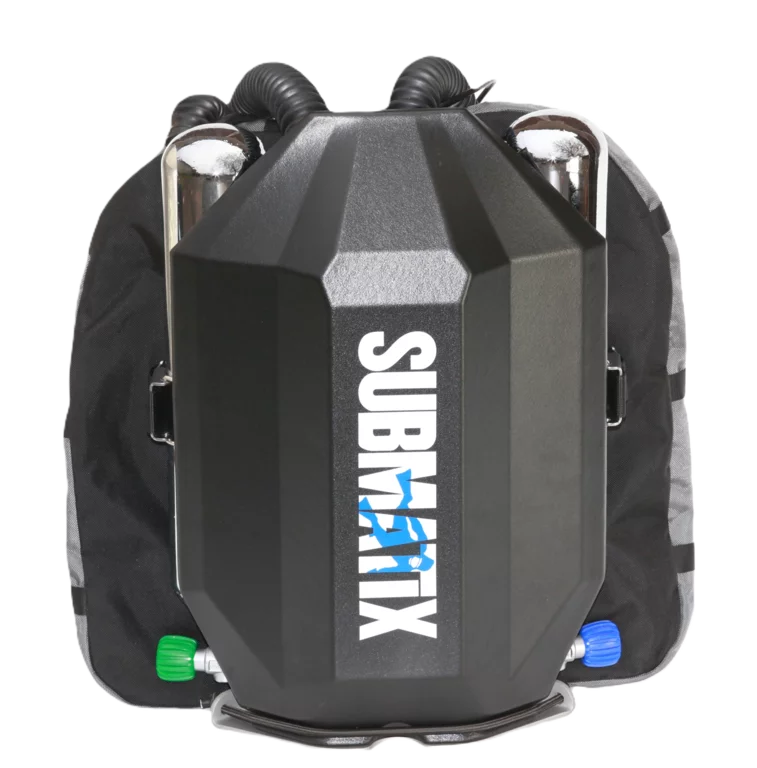

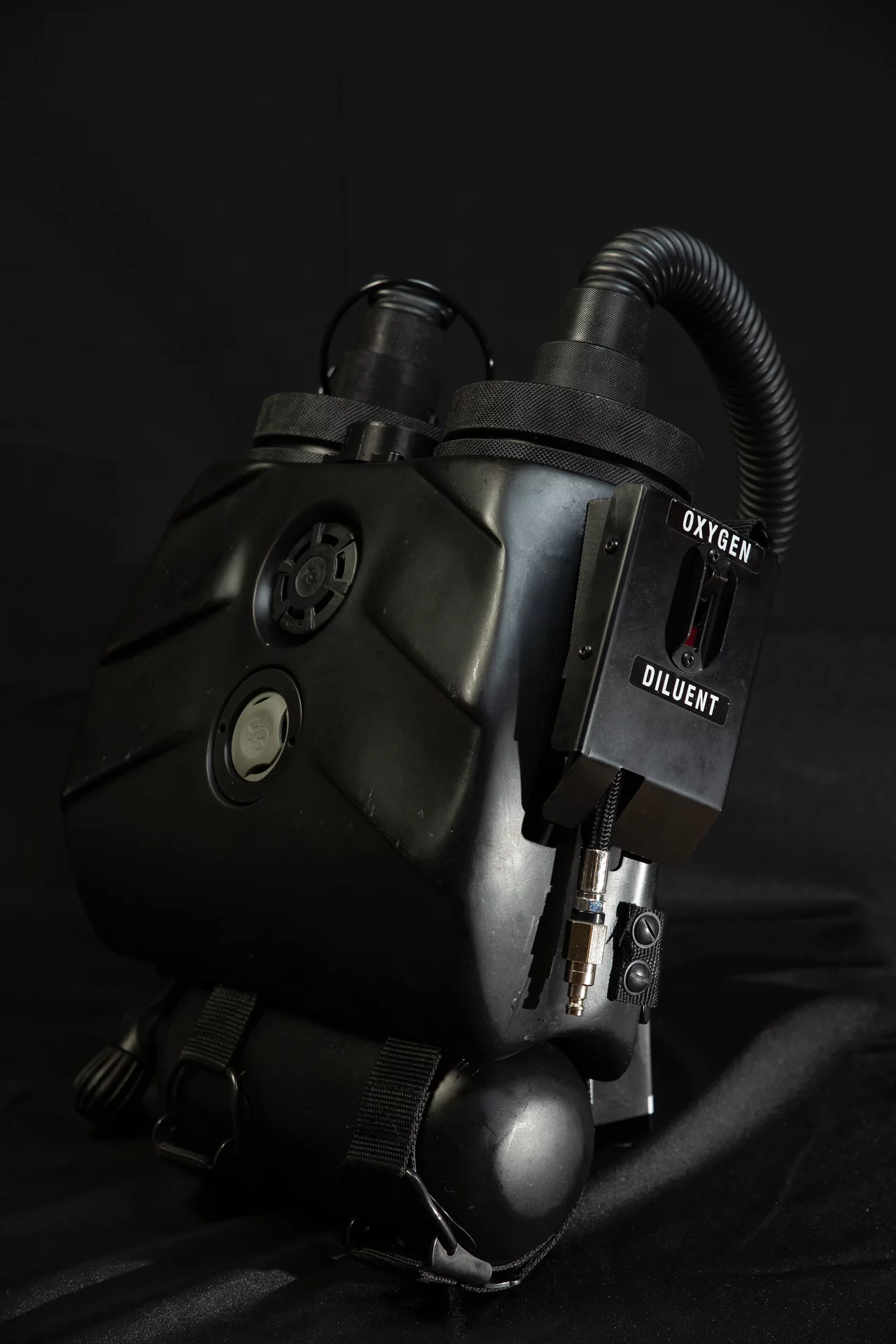

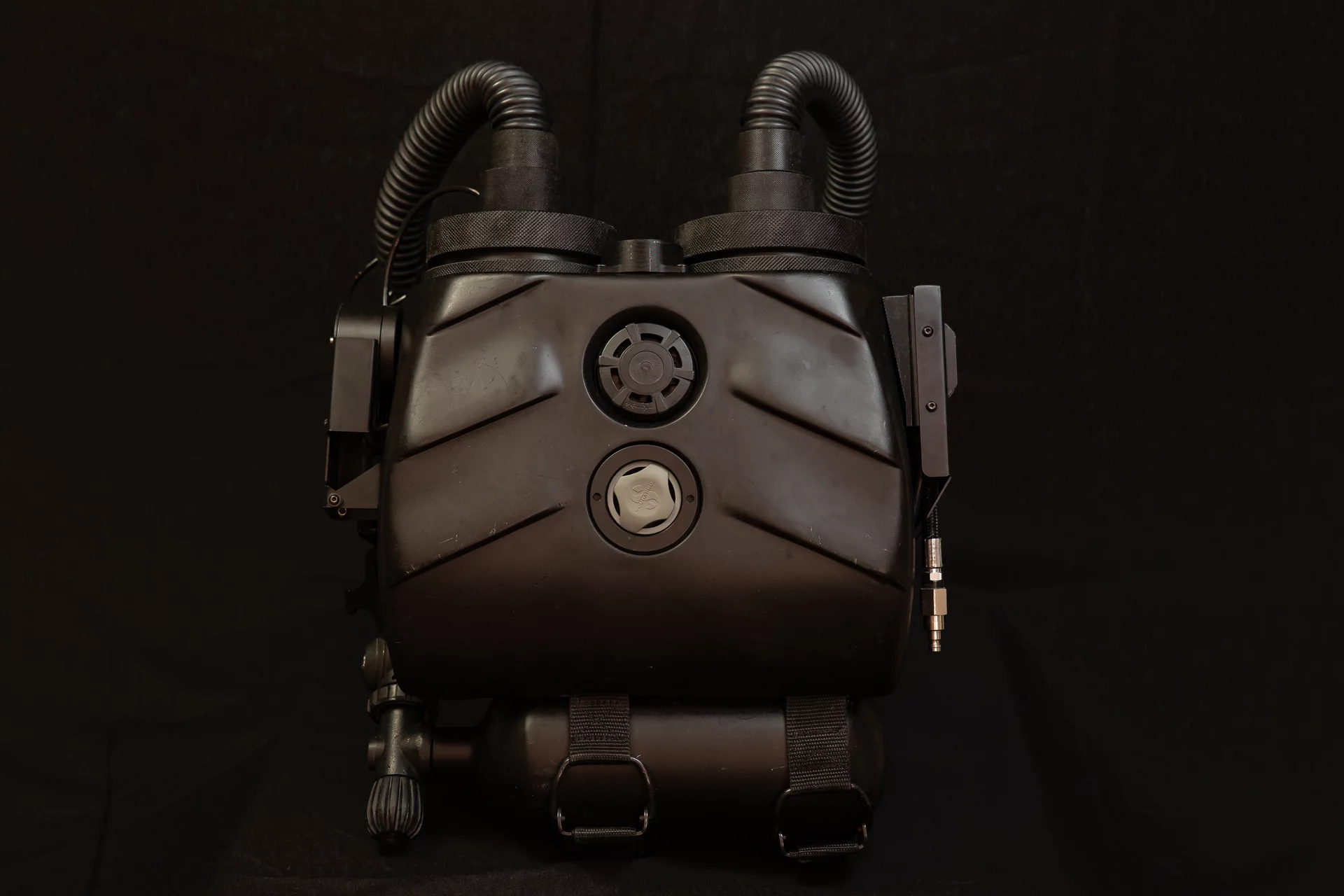

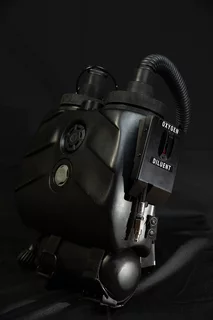

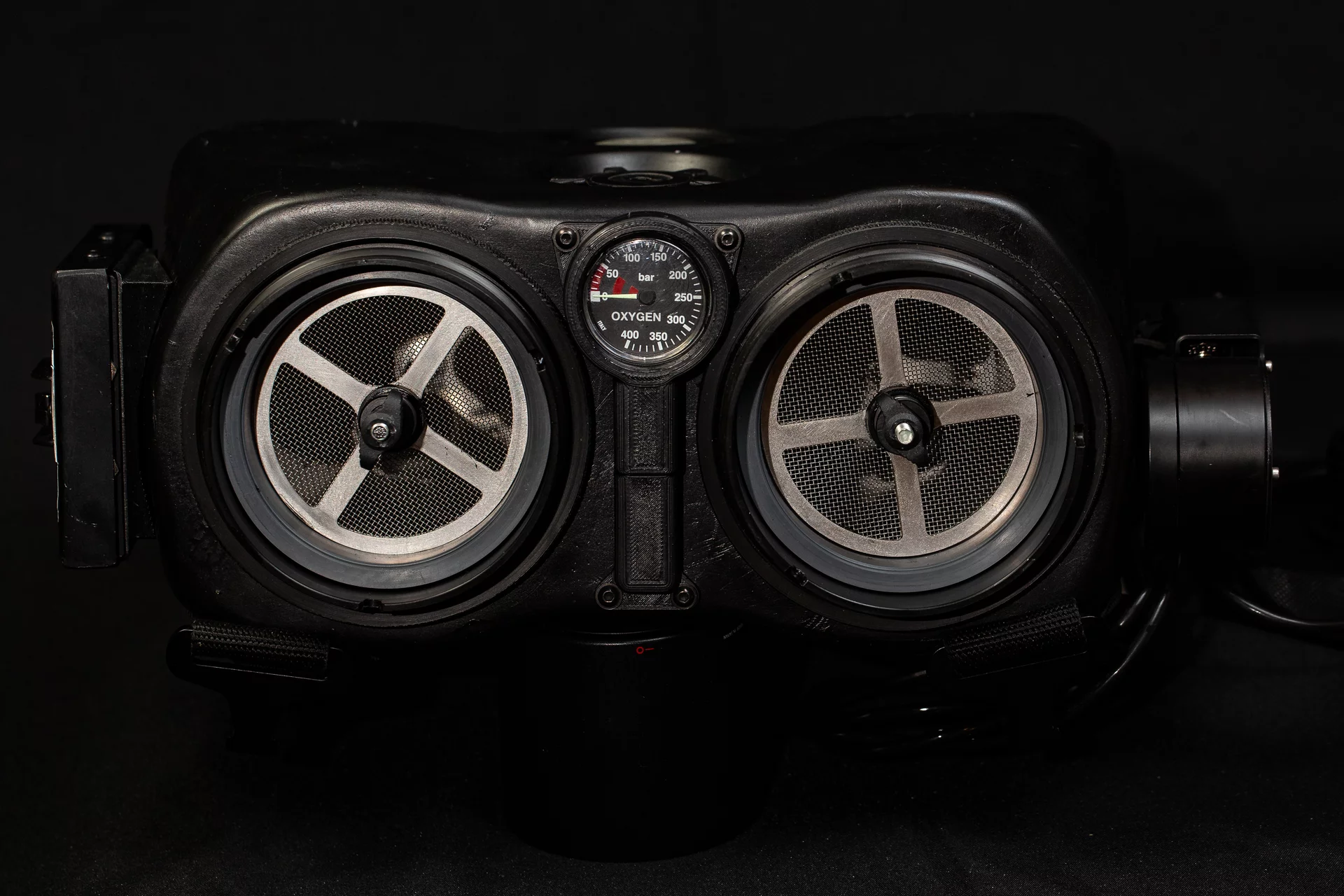

SUBMATIX Combo 2 Rebreather

for complex missions

Compact, robust, modular

Modular Rebreather system,configurable as :

  • pure Oxygen reberather
  • mCCR rebreather awitchable to Nitrox ( SCR )
  • eCCR fully closed Rebreather
  • front and back mounting possible

Technicals :

  • robust GFK housing
  • counterlung mounted in the GFK housing, thermal isolation for longer scrubber working time in cold water
  • Scrubber 2 x 1.3 Kg absorber material
  • chemical and optical ( Green Flash ) sensors available
  • Equipped with Submatix electronic possible as eCCR
  • various carrying systems are available / backplate with harness / tactical vest
  • weight with out cylinder and without soda lime 7 Kg
  • dimensions 35 cm x 18 cm x 42 cm ( without Oxygen cylinder

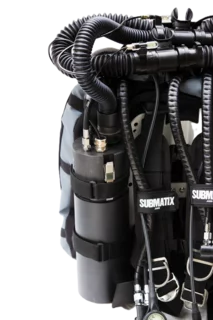

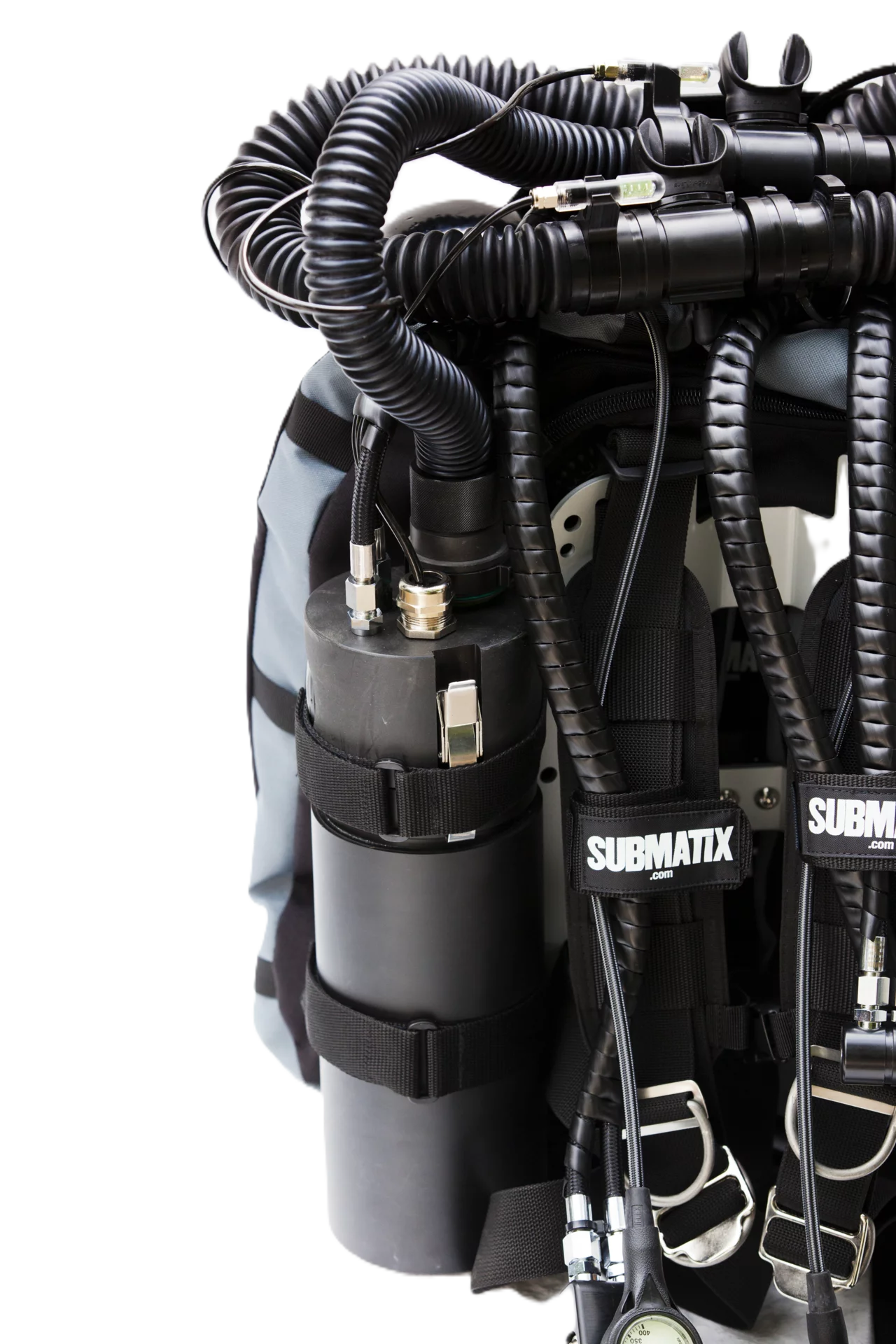

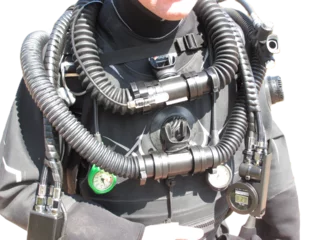

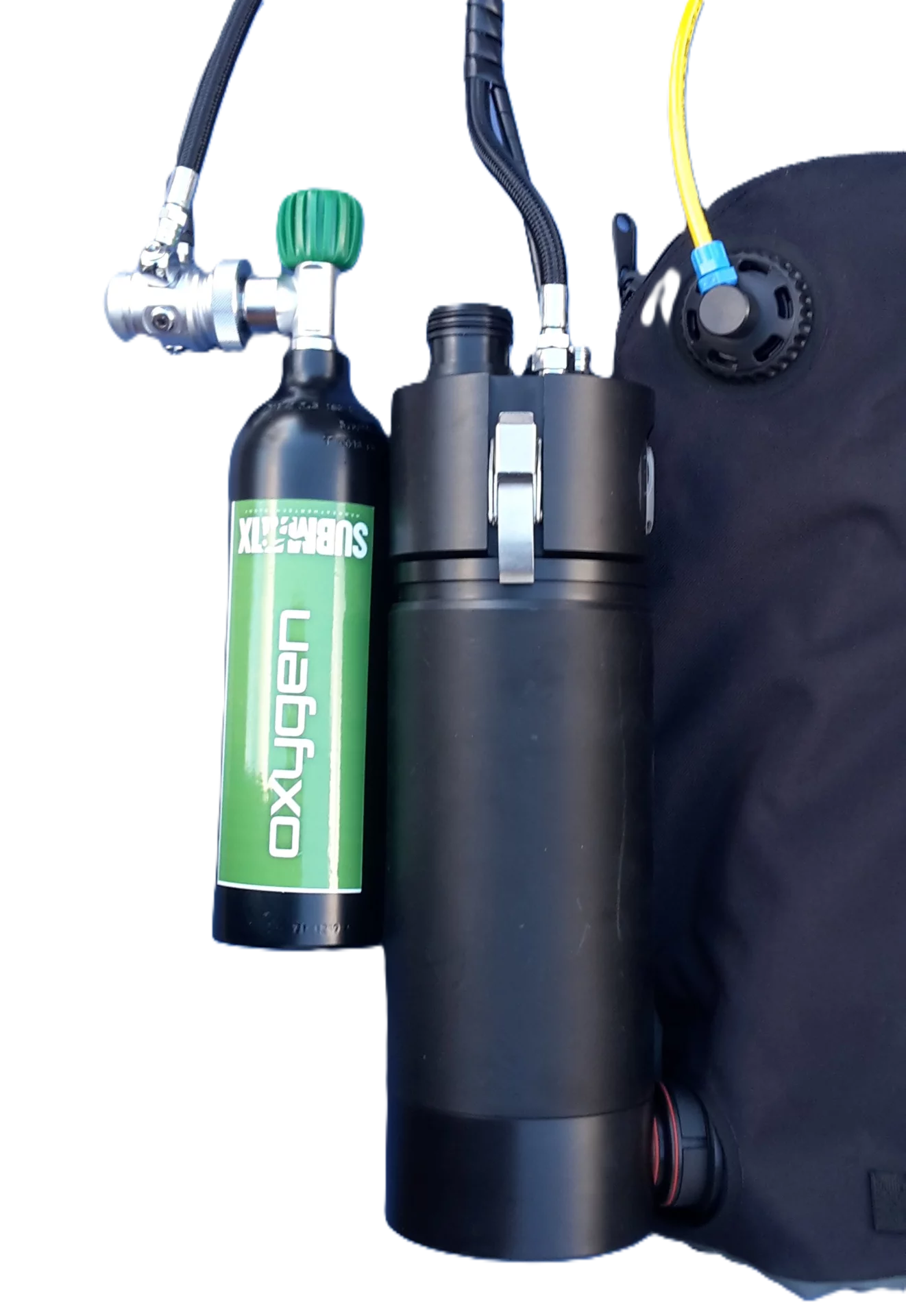

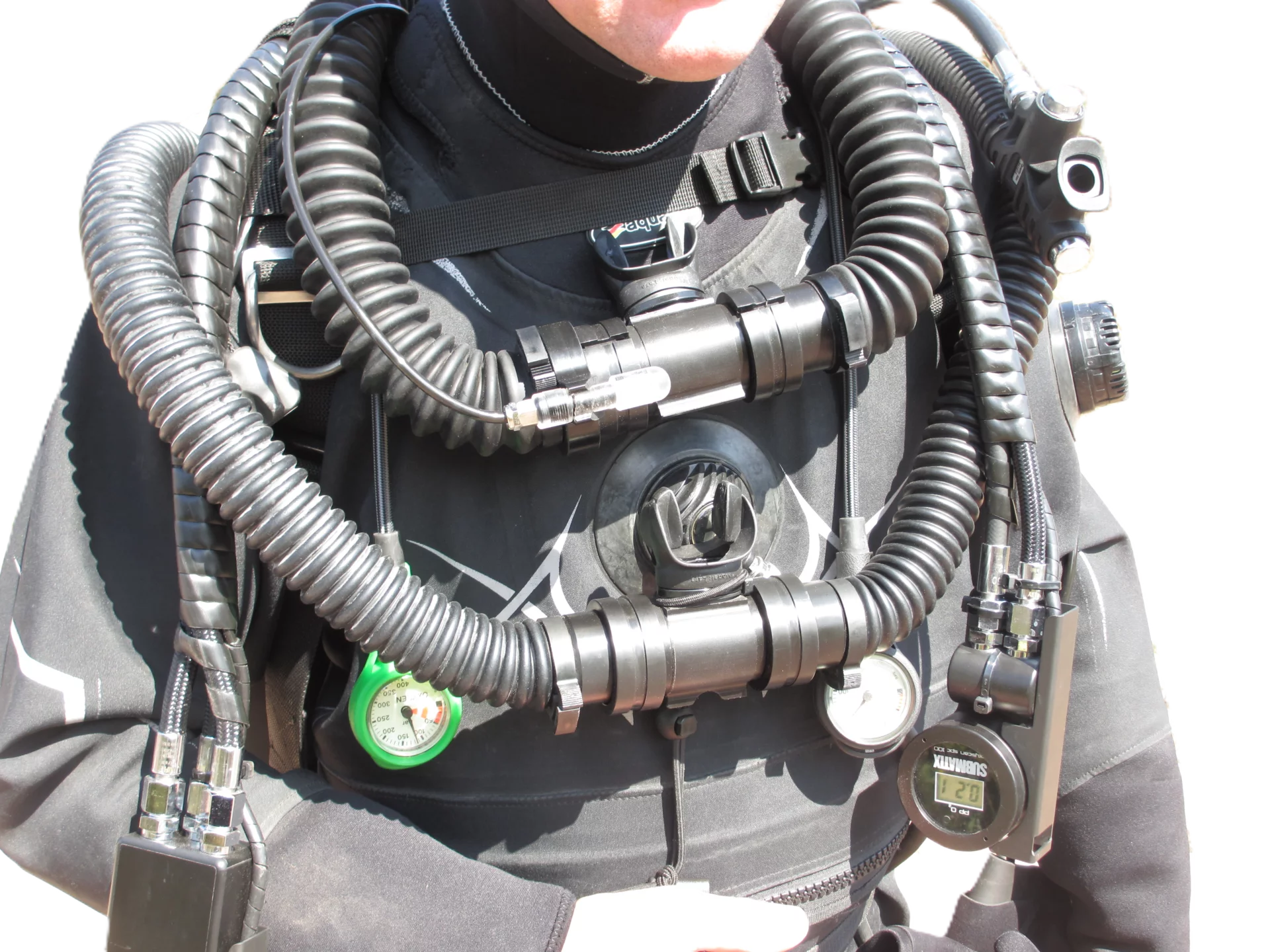

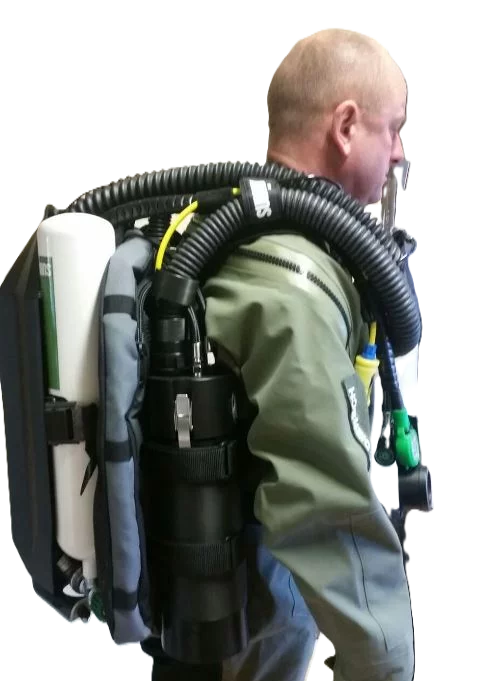

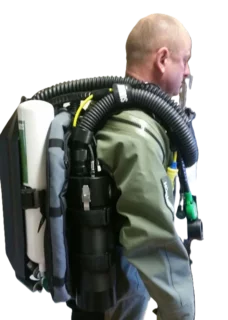

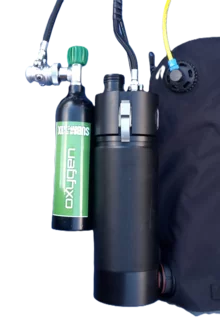

SUBMATIX ABS REBREATHER

Autonomous Breathing System

  • Developed as a bail-out system
  • No large cylinder packs required
  • The ABS can be combined with almost all rebreathers
  •  Manual gas injection with oxygen and DIL booster Optional electronics available
  •  1.8 kg calcium reservoir mounted under the right shoulder
  •  Breathing hose without annoying T-pieces
  •  compactly positioned at the front of the diver
