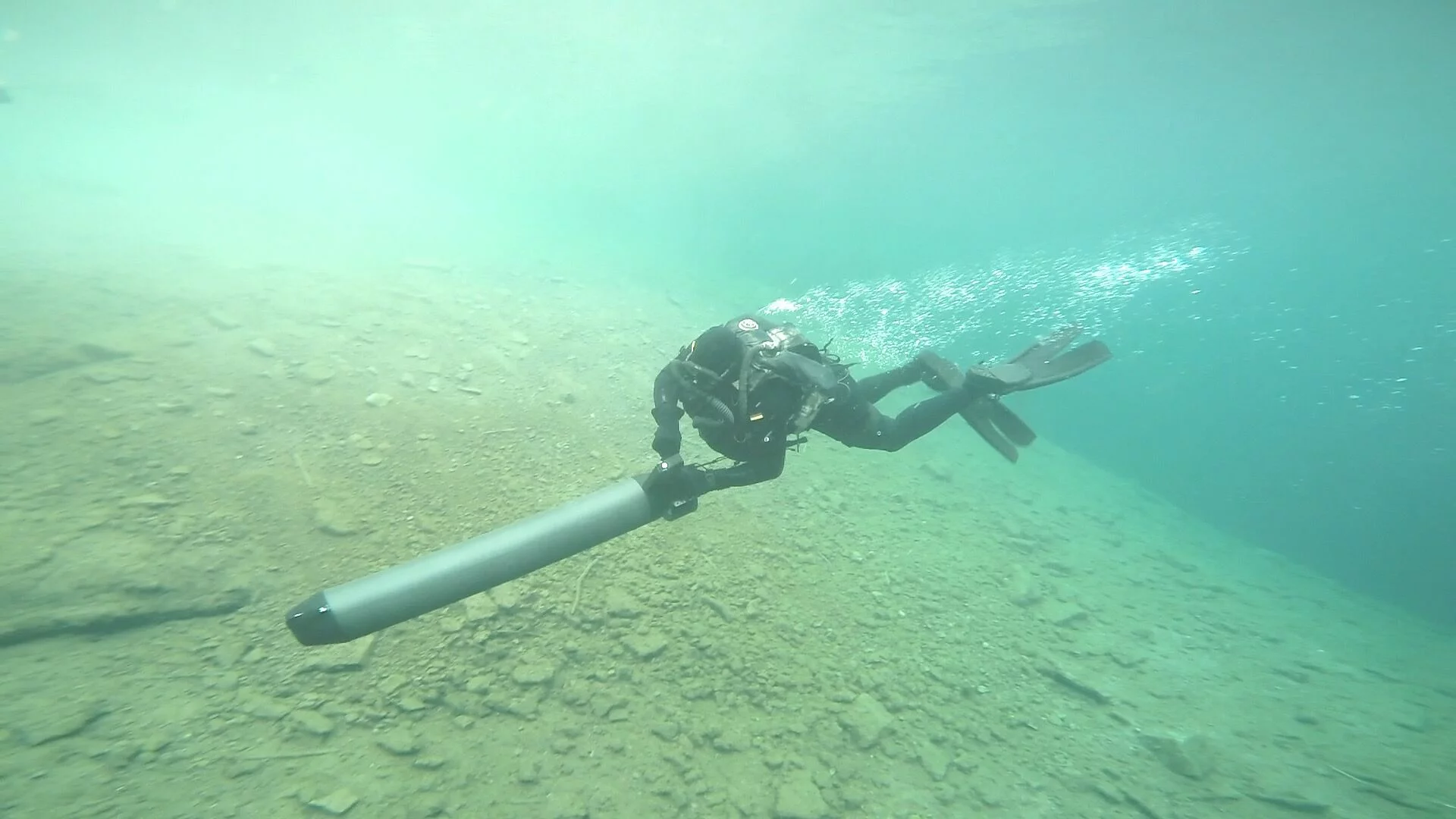

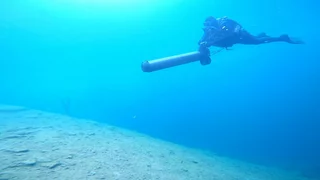

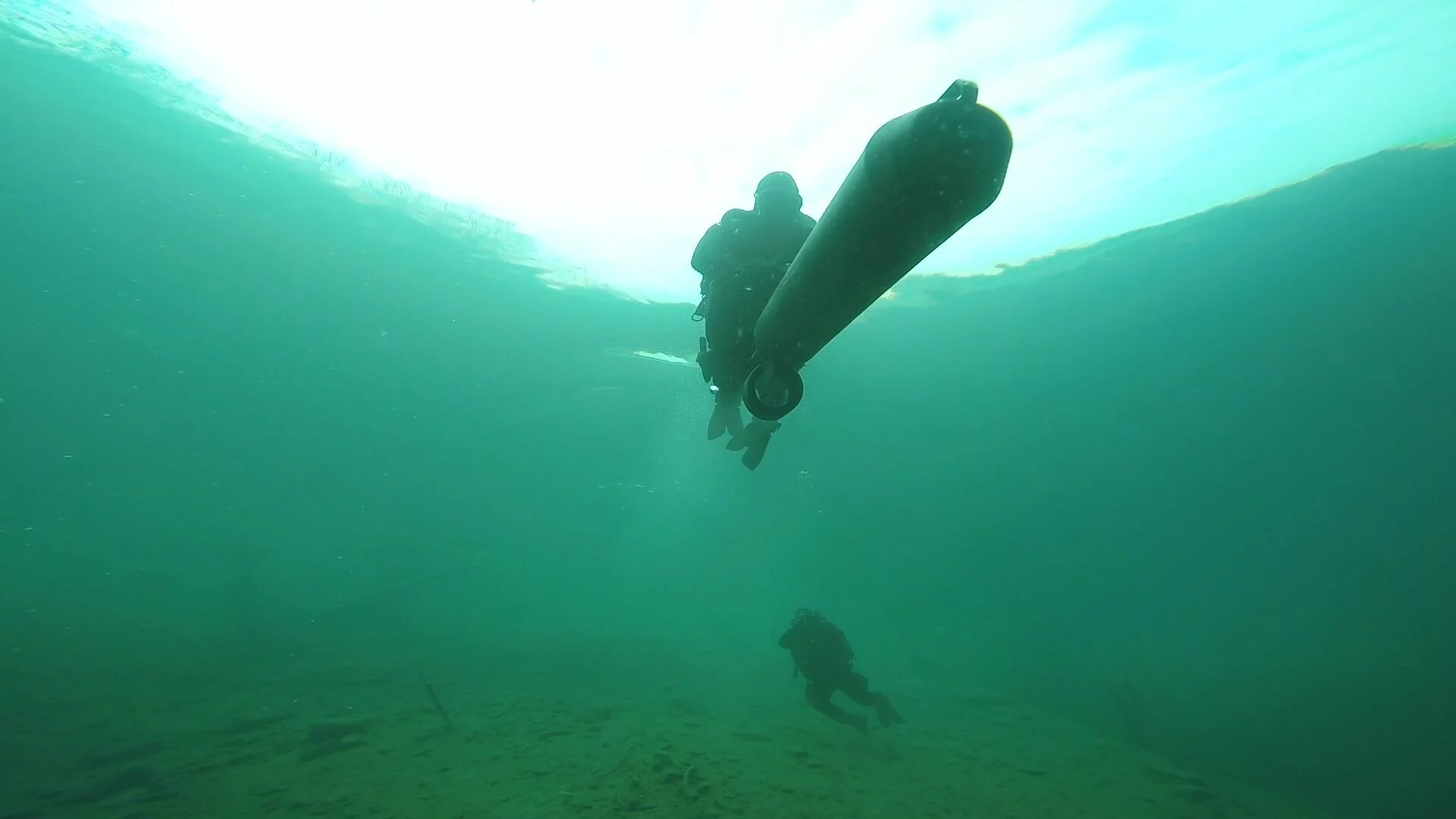

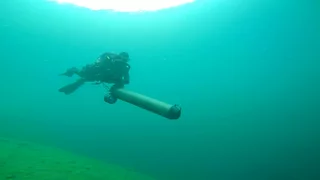

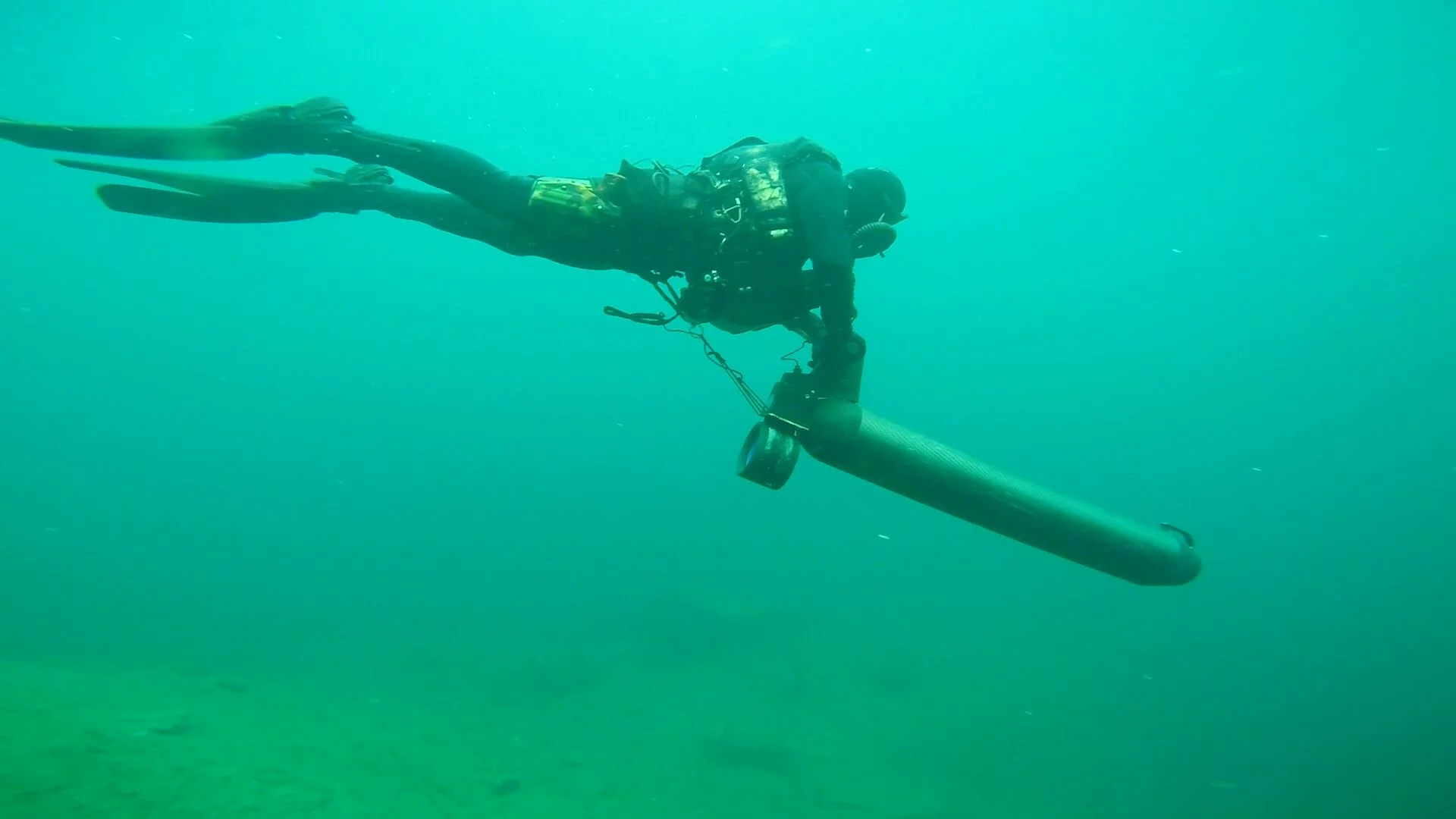

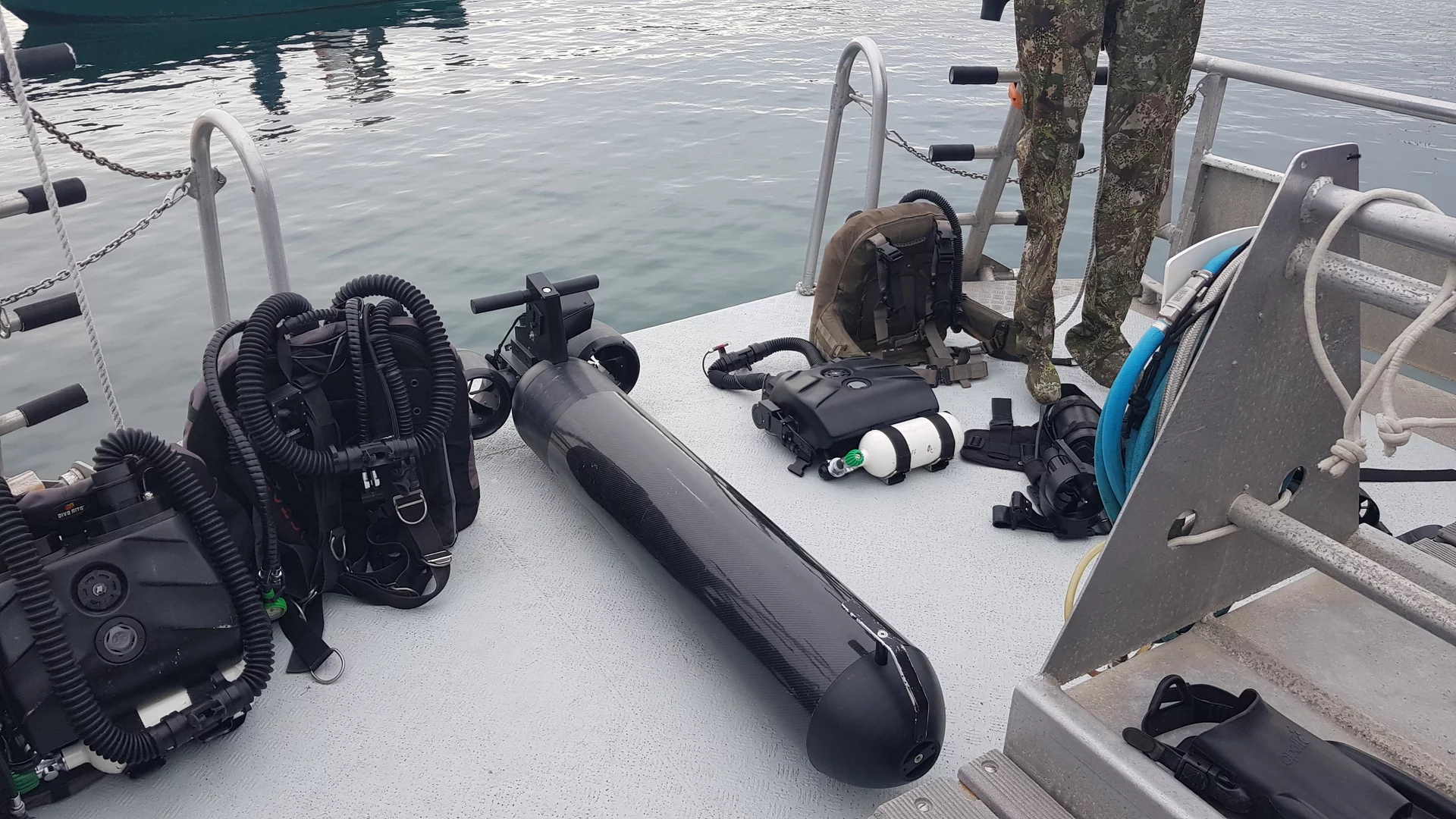

Torpex Scooter DPV

New technologies and materials were used in the development of the Torpex scooters

  • New technologies and materials were used in the development of the Torpex scooters.
  • Robustness Easy handling
  • Modularity Reliability
  • Adapted for military applications
  • Right- and left-hand use

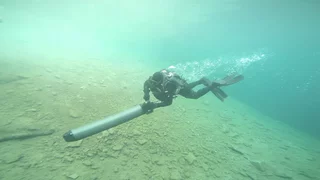

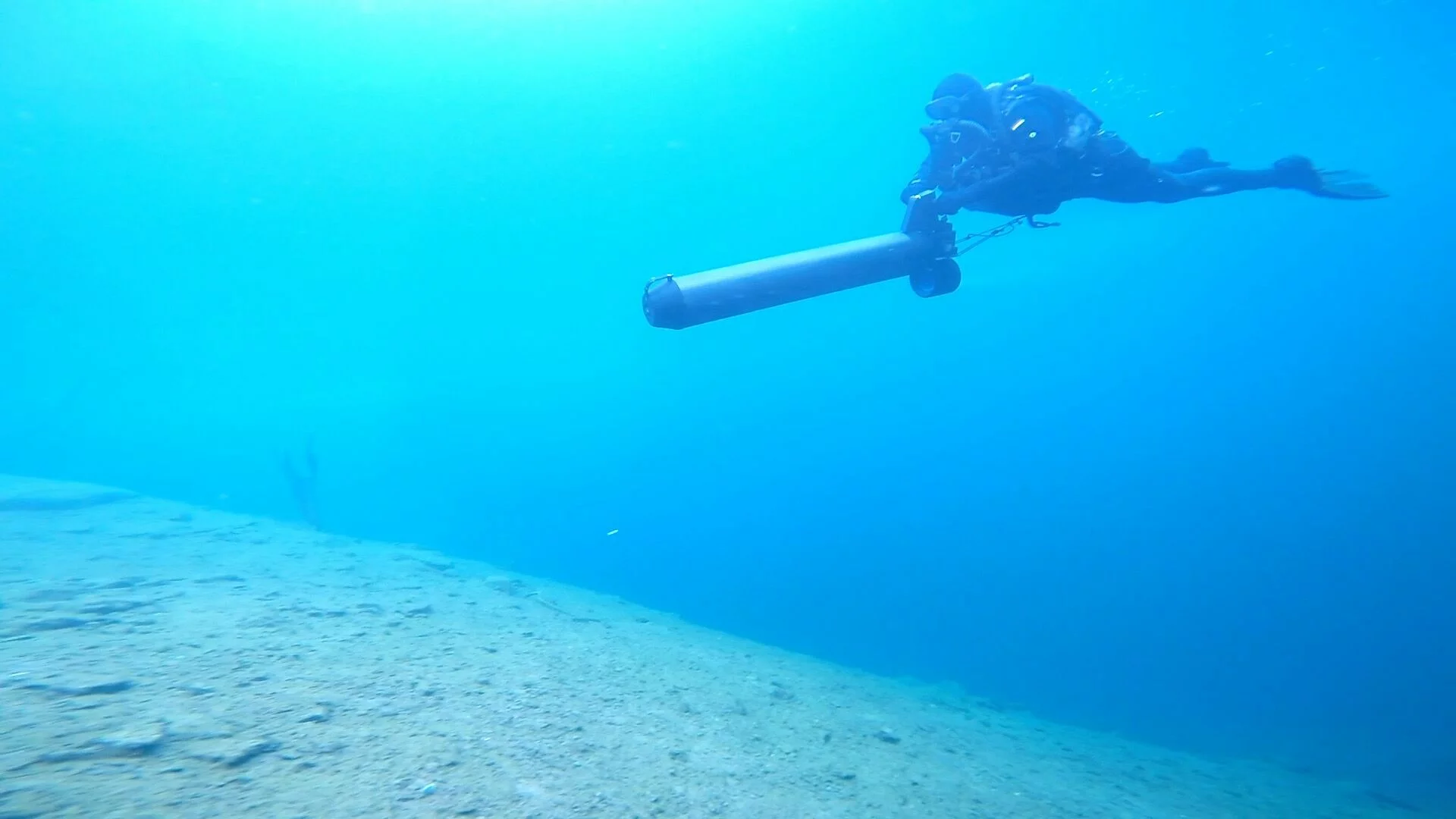

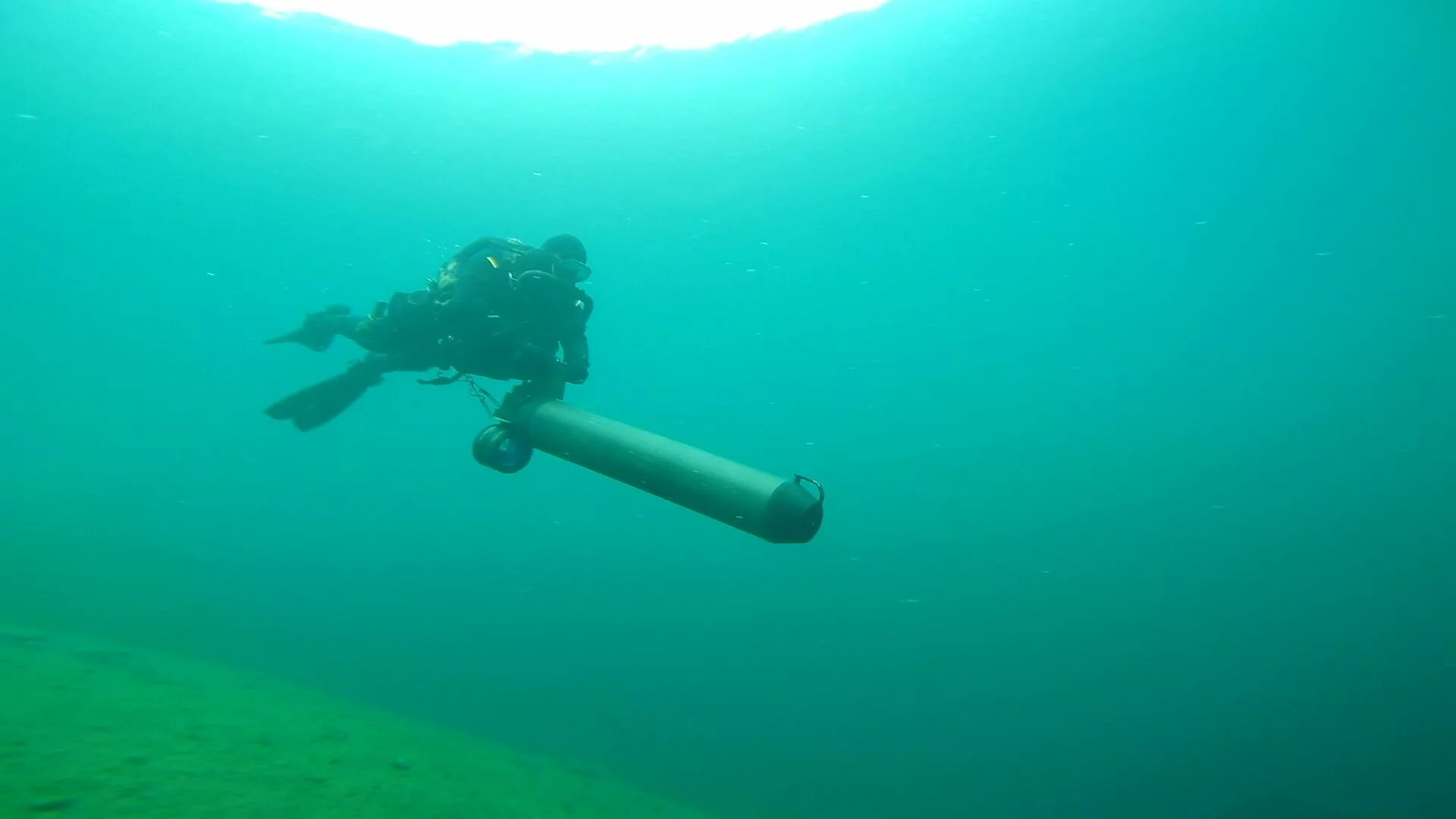

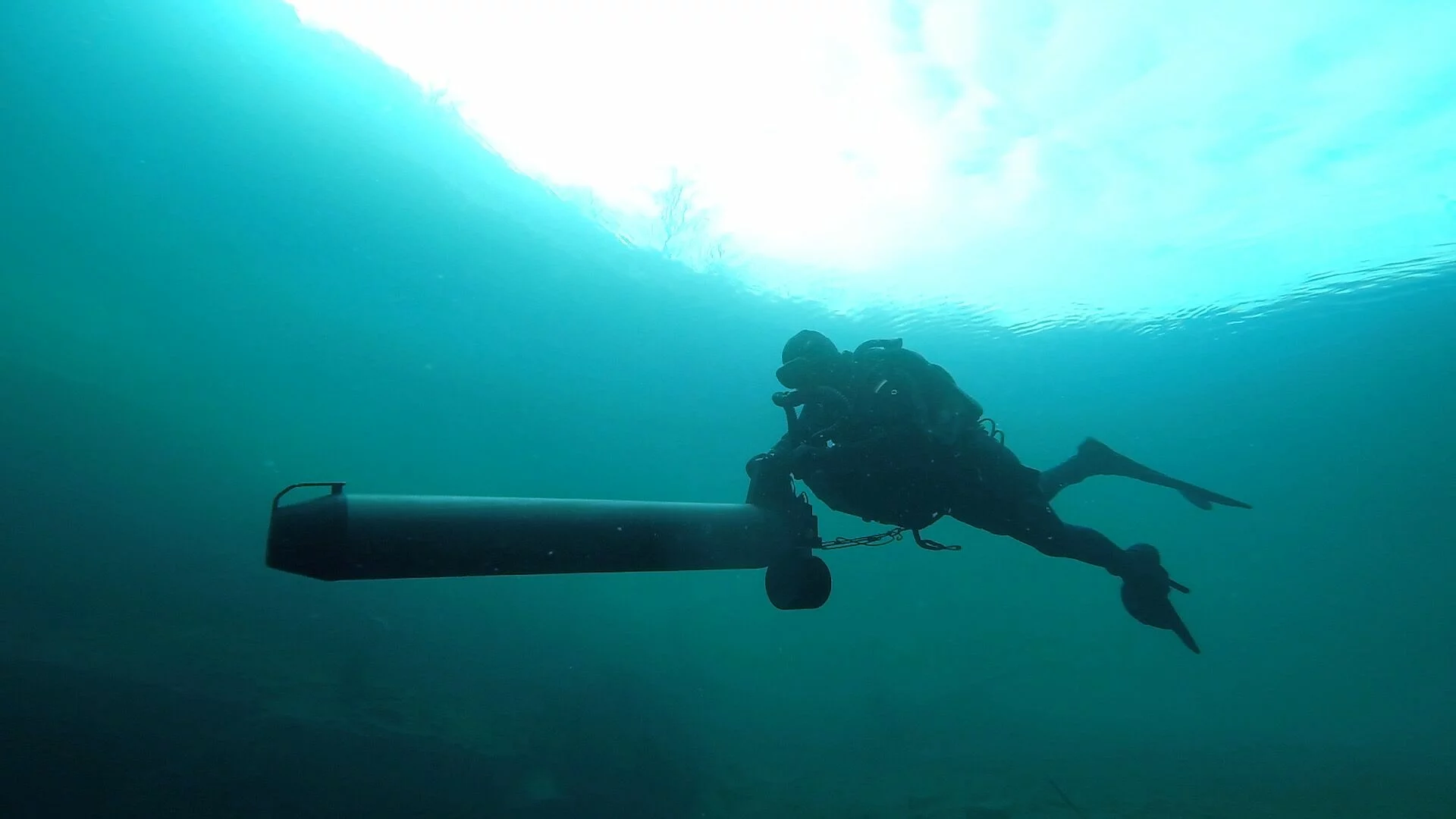

The result is a powerful and modern DPV

  • Drive: 4.5 kW ring motors
  • Practically wear-free motors
  • No mechanical transmission
  • Direct power transfer to the propeller
  • Maintenance- and wear-free plain bearings
  • Motor cooling by flowing water in the air gap
  • Battery charging without opening
  • Long-term storage without disassembly (main switch)

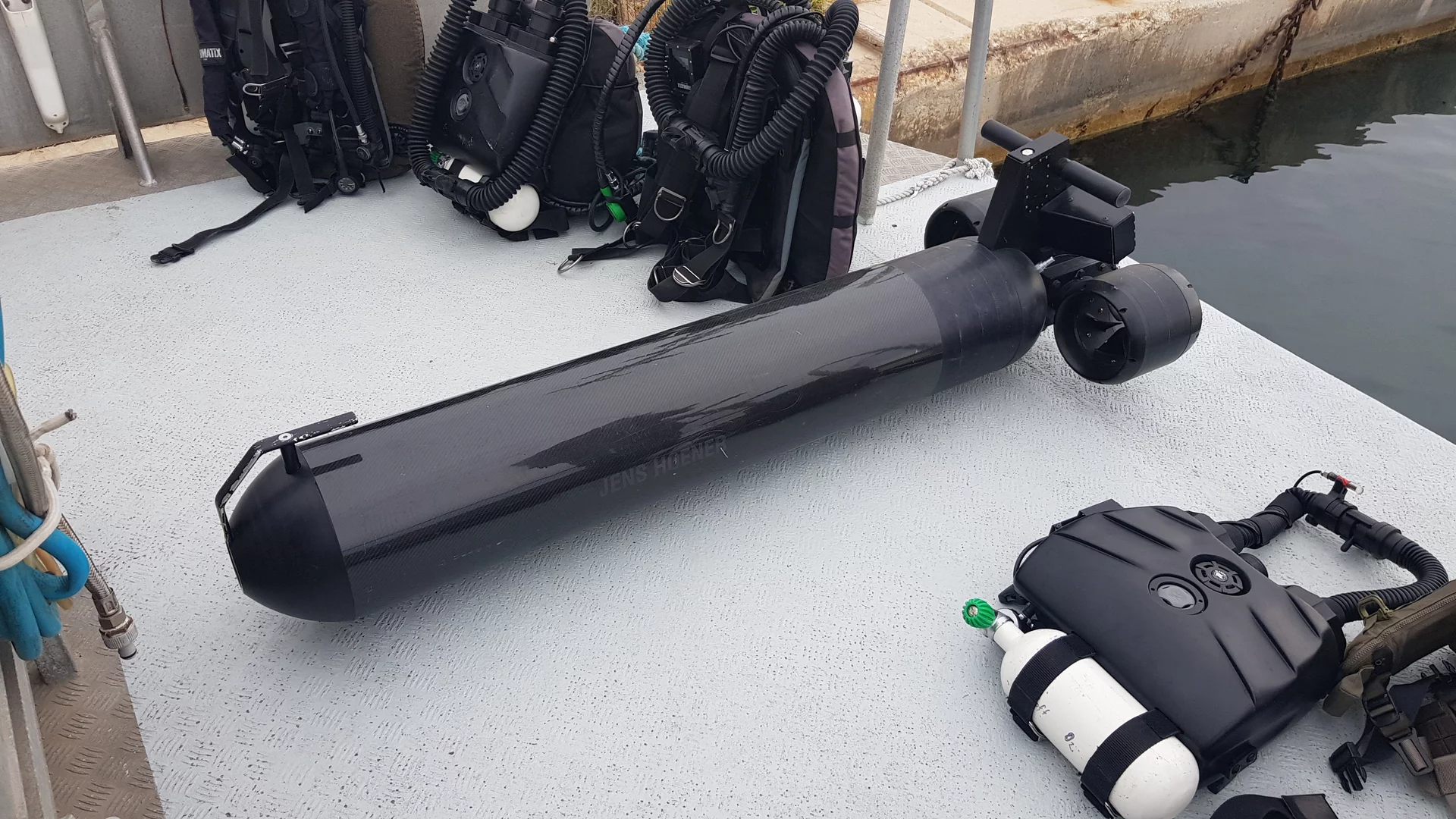

Two models are available.

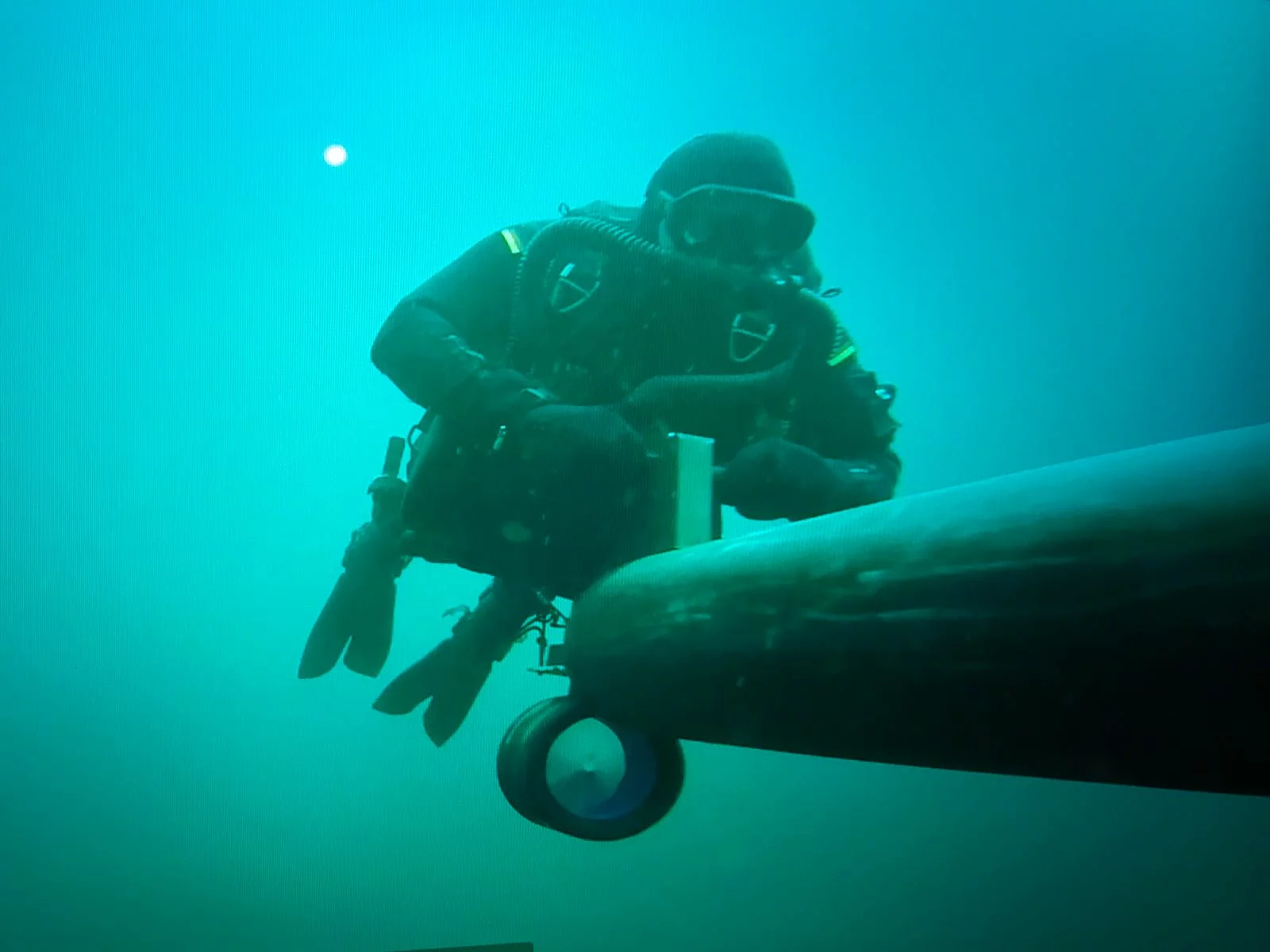

One-drive (one motor mounted off-axis), thus eliminating torque and shoulder fatigue.

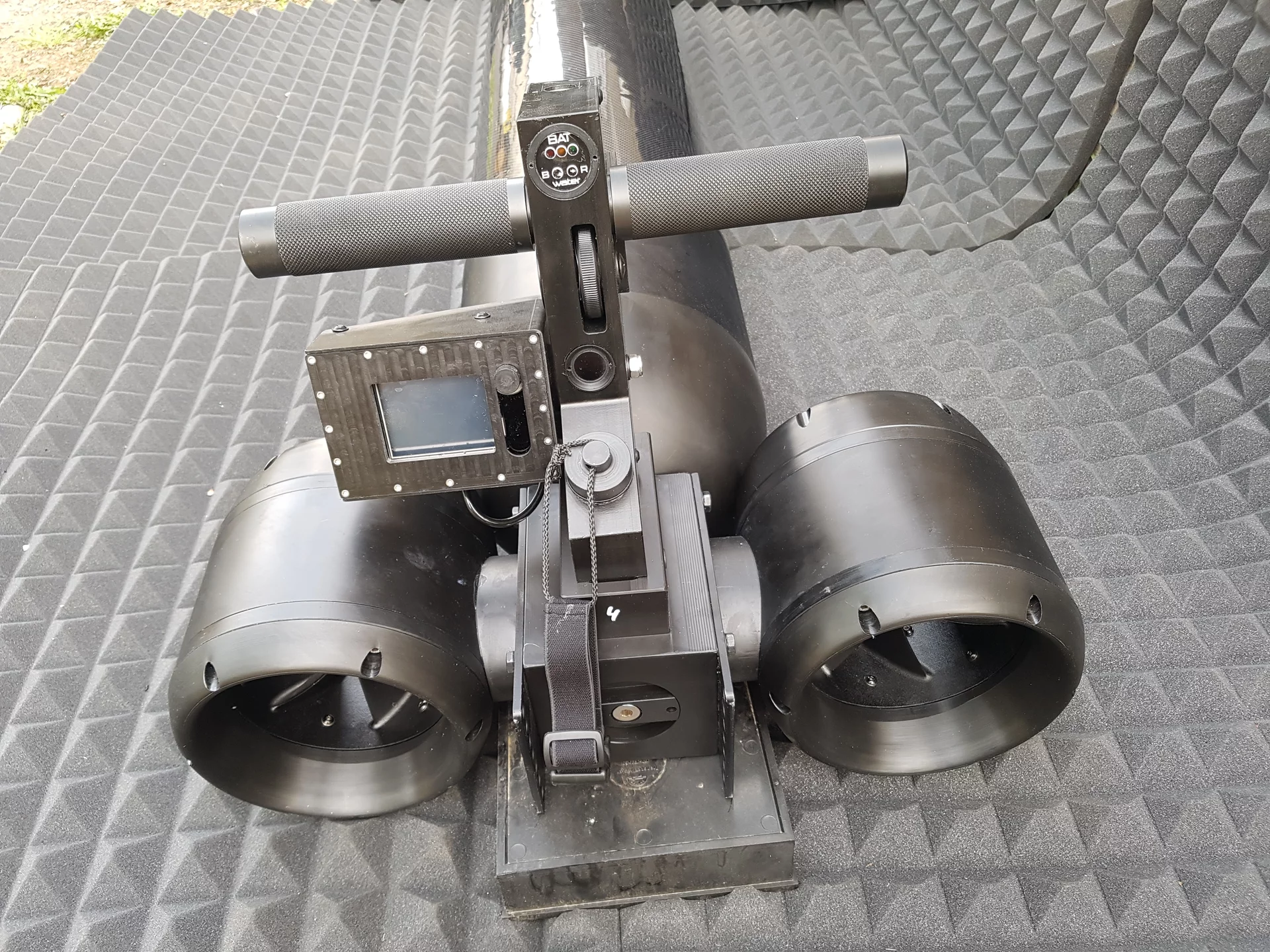

Two-drive (two motors with inverted propellers) produce extremely smooth, straight-line operation without torque.

Technicals

scooter one drive two drive
static thrust 75 Kg 150 Kg
dia tube 220 mm 250 mm
dia motor 194 mm 194 mm
height with handel 370 mm 550 mm
height w/o handel 250 mm 430 mm
length 1600 mm 1600 mm
weight 54 Kg 72 Kg
material POM / CFK / steanless steel / ALU POM / CFK / steanless steel / ALU
speed up to 3.8 Kn up to 5 Kn
drive time 180 min 180 min
battery 58 volt 96 A 135 A
battery 5500 Watt 7830 Watt
max deepth 200 m 200 m

Options

  • transportcase
  • big display
  • wireless display handset with incl dive computer / compass / GPS
  • GPS
  • trimmweight / trimmweight rail

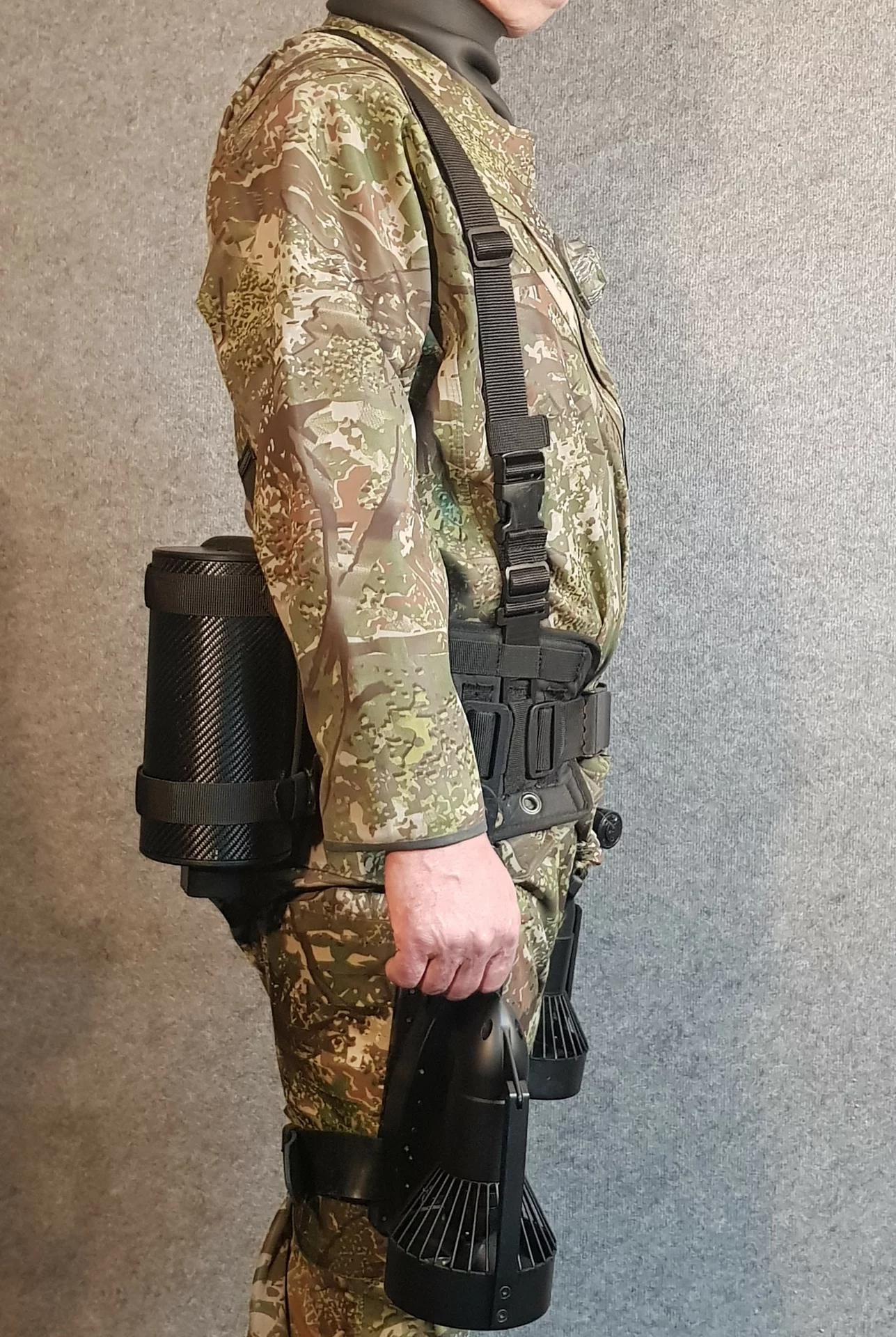

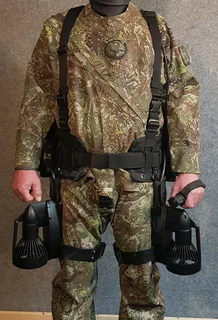

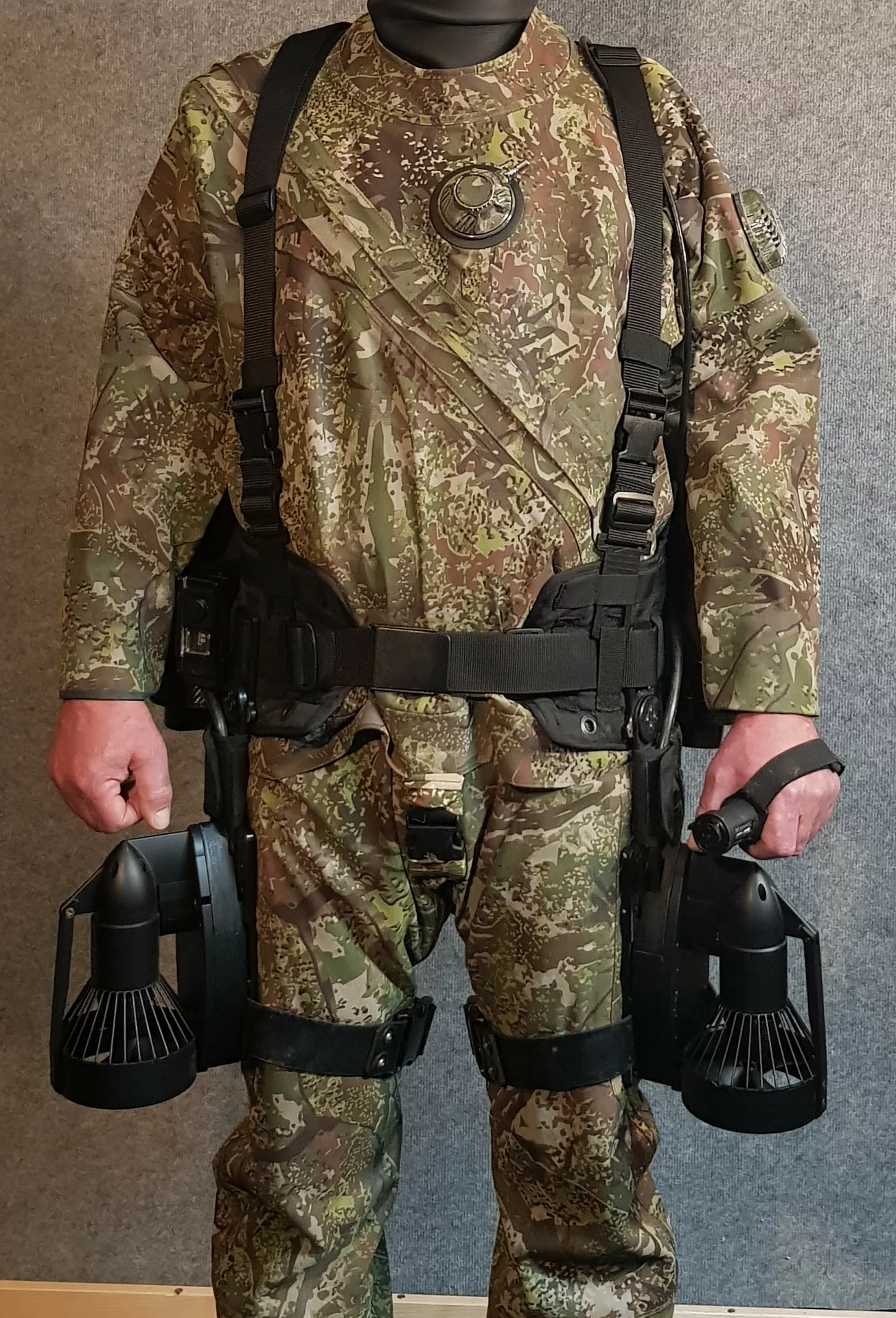

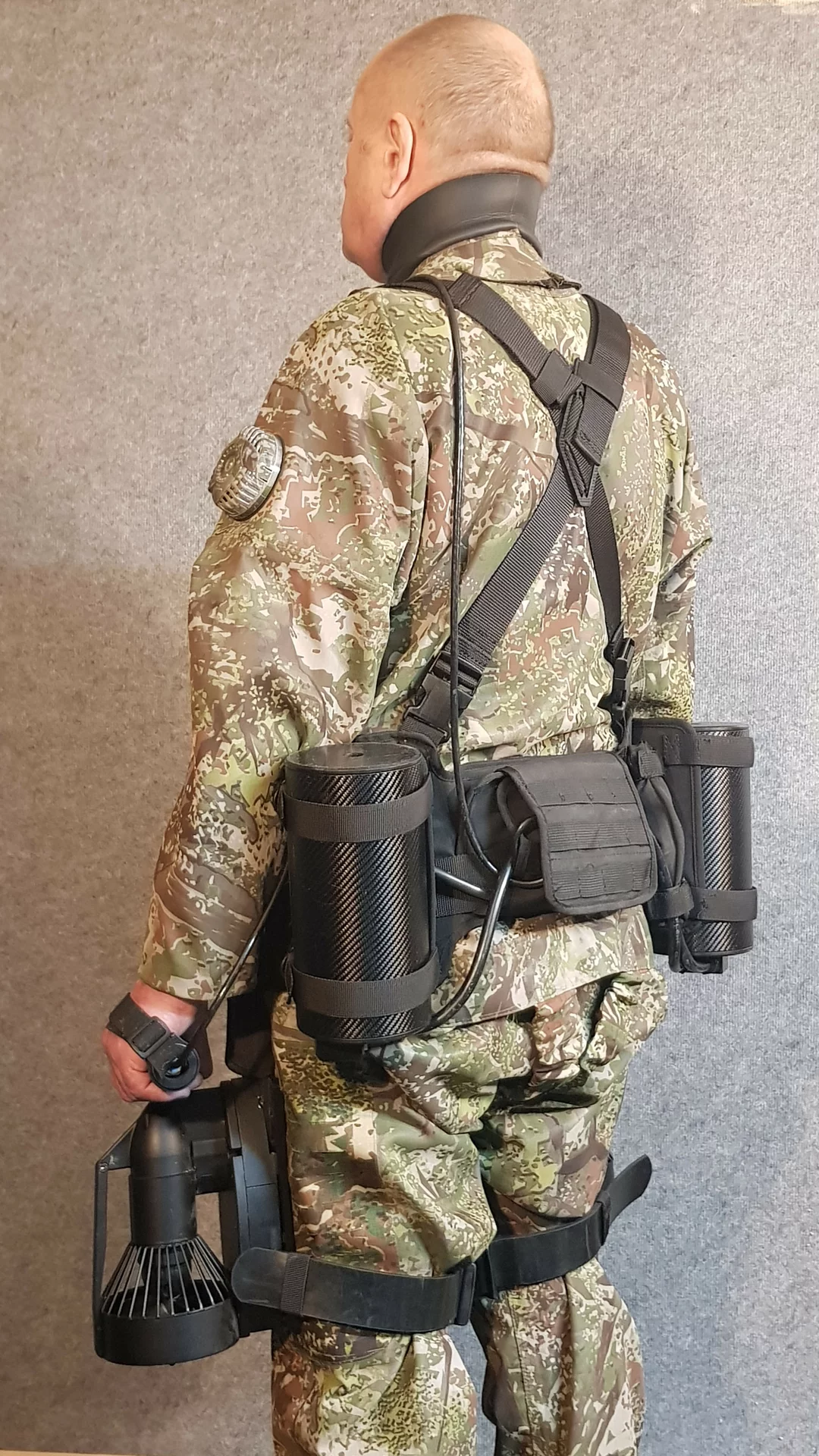

Body Thruster

  • Motors with inverted propellers
  • that can be removed underwater
  • Battery pack under the shoulders, Rechargeable without disassembly

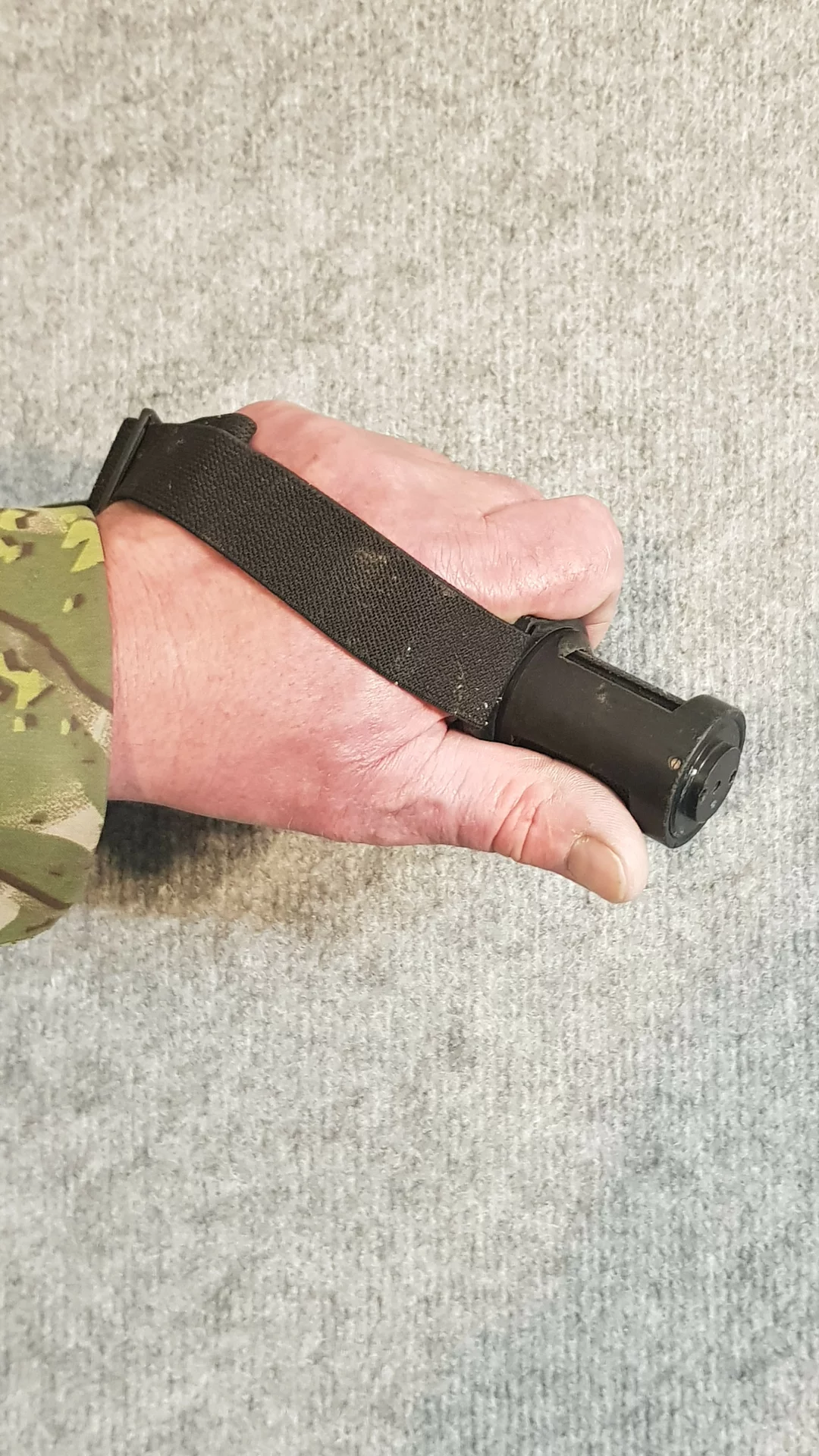

  • Speed controller can be rotated to the back of the hand for hand-held use
  • Battery pack 50 Volt / 31.5 Amp / 1575 Watt
  • Motors 2 x 20 kg thrust
  • Runtime at 4.3 knots: 50 min / 3.3 knots: 106 min / 2 knots: 118
  • propellers that can be removed under water without tools.
  • Weight in: Seewater: 5.7 kg / Freshwater: 6.3 kg
